Name: Larger Precision Diamond Wire Cutting Saw with 3D Sample Stage - 40" Dia Cutting Capability - STX-4001
SKU: 460181

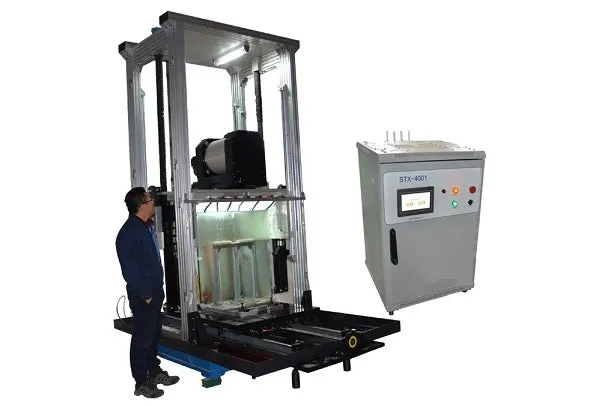

STX-4001 is a CE certified large precision diamond wire cutting saw. It is designed to provide the smooth cutting or slicing for all kinds of materials (especially for larger size crystals, such as Si, CaF, glass, and sapphire, etc.) with the diameter up to 40" (1000 mm). It cuts the sample by a diamond impregnated wire (0.28 mm diameter) which moves back and forth repeatedly with the help of a digital controller.

SPECIFICATION

Power Supply	AC208-24 VAC, 50/60 Hz, 6000W, Single Phase
Cutting Speed	0.05 - 100 mm/ minute adjustable
Wire Moving Speed	0 - 5 Meter/ second variable
Controller	6" color LCD touchscreen control unit allows you to set the program to control the Moving Speed of the diamond wire, feeding speed of the sample stage, the slicing thickness, and coolant pump operation.
Sample Stage	The sample stage can move in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation. Max. Load Capacity: 1500KG
Diamond wire	Ø 0.65mm x 400 m Length
Cutting Area	Ø1000mm × 1000mm
Wire Tension	Built-in pneumatic valves can easily adjust the tension of cutting wire. (air pump with >20 PSI pressure is required, but not included)
Cooling	Circulating water/coolant system by two water pumps (included)
Meteorite Sample	Please click the picture below to view the meteorite samples that were cut by our wire saws.
Certification	CE Certified. With additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Warnings	It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use oil based coolant or lubricant with the water. Do not use tap water directly, rusted component is not part of the warranty. Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused to the spooler driving mechanism. For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen diamond wire frequently. We suggest that cutting sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the wire sharp enough for efficient cutting. Please clean the machine after the completion of each use.

STANDARD PACKAGE

Item No.	Description	Image
1	screw-drivers 1set
2	auto-tensed wheel 4pcs (2 has been installed on the machine)
3	power cable 1pcs
4	spool handle 1pcs
5	hex-angle screw 4pcs
6	leading wheel 4pcs (2 have been installed on the machine)
7	spanner for wire-installer 1pcs
8	triangle block 1pcs
9	water splash guard plate 2pcs
10	water splash guard cover for spooler 1pcs
11	270 m diamond cutting wire (0.28mm) 2 pcs (1 on the machine)
12	wire-installer 1pcs
13	coolant circulating tank /pump 2pcs
14	Diamond Blade Dressing Stone
